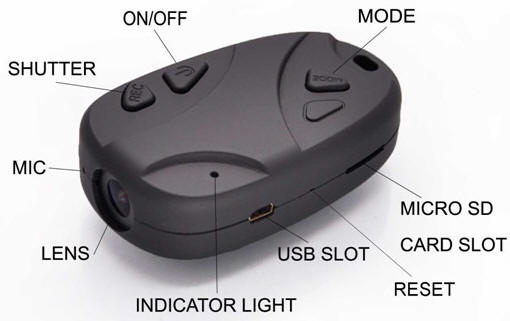

      VW890 Camera

This is a 40 gram class micro camera.  AVI, H.264, 1080p 30fps, 720p 30fps, 720p 60fps.
Produced by ChunYuk Technology (HK) Co., Ltd and VWTECH.

VW890 and the VW898 are the same schematic, electronically identical.  The cases are different and the VW898 battery is larger.

Full disclosure - VWTECH sent me this camera to review.

VW890 Links
Producers, manufacturers, developers Chun Yuk VW890
Instruction manual
RC Groups forum Ruby Lee, owner of VWTECH, her RCGroups Blog
Sellers Amazon, eBay
Links to some reviews
Video samples on YouTube, etc. Visionwide International
Firmware for downlad
Google search of this camera VW890
3D or CAD related to this camera

VW890 Question & Answer (Q&A)
Q. What is the difference between the VW890 and the VW898?
A. They are electronically the same.  The USB cables are the same.  The cases are different. The VW890 and the VW898 batteries are 520 and 650 mAh, respectively.

VW890 vs 808 #16

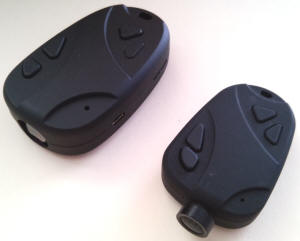

VW890 vs 808 #16 V3 D lens
Q. Physically, how does the VW890 compare to the 808 #16 V3 D?
A. The VW809 is larger and heavier.  The VW890 is 39 g and 68 x 41 x 22 mm.  The #16 is 19 g and 57 x 33 x 15 mm.

VW890 Objective facts and metrics
Click images for full size
Camera Dimensions - 68 x 41 x 22 mm.

Weight (nearest gram) -
Camera 39 grams
Circuit board with CCM 15g
Battery module with cable and connector 10 grams
Case button side w/buttons 7 grams,
Case battery side 6 grams
Case screws < 1 gram
15 inch extension cable w/connector 3 grams
8 inch extension cable w/connector X grams

Battery module -
LiPo 520 mAh, with protection circuit.

- AIT8427D Alpha Imaging Technology 32-bit RISC CPU, AIT2013N.

Image sensor - OmniVision OV2710-1E. 1920x1080, image area 5.856 x 3.276 mm. Omnivision OV2710-1E
Firmware Storage - 25L6406E, 8MB flash SPI.

Internal Camera Module Flat Cable - 24 pin, 0.5mm pitch.

CAUTION - Only use the USB cables that came with your camera.   The wrong cable could destroy your camera.   Label the cable.
USB cable
- USB-A 4-pin connector to UC-E6 8-pinconnector.  The VW890 and VW898 cameras use the same cables.  The UC-E6 connector is not specified by USB.ORG.  A cable with the UC-E6 connector can be wired many different ways.

- Calculated power dissipation in the camera is about 2.5 Watts.  (1.9 Wh LiPo battery, 520mAh, 3.7V average, 0.77 hours). The Processor does not have a heat sink.
Webcam summary - The camera can operate as a USB 2.0 video webcam at verified resolutions of 320x240, 640x480, 800x600, 1280x720, 1920x1080The camera microphone does not work in webcam mode.

Webcam details -
The webcam installs as an Image device.  It doesn't install as an audio device so the camera microphone can't be used in webcam mode. The webcam was tested with Windows 7 64 Home Premium and CyberLink YouCam 3.  Since this is USB 2.0, the theoretical maximum capture data rate is 60 MBps.

On Windows 7 the webcam installs as two devices: Imaging Device - USB2.0 UVC HQ WebCam - Hardware ID 114D 8C00.  USB Controller device - USB Composite Device - Hardware ID 114D 8C00.

Image capture, all resolutions verified.

Video capture test.  What you capture depends on your webcam capture software.  YouCam captures photos in JPG and captures video in AVI, YUV codec. Audio in the AVI is PCM codec from the computer microphone.
All resolutions were verified to video capture.  Unique frame rate 30fps - 320x240, 640x480.  Unique frame rate less than 30fps 640x480, 800x600, 1280x720, 1920x1080.  1080p data rate 51 MBps. 240p data rate 4.6 MBps.

Video recording, 1080p, AVI H.264, full battery until the camera stops recording (battery discharged).
VW890 1080p stationary daylight

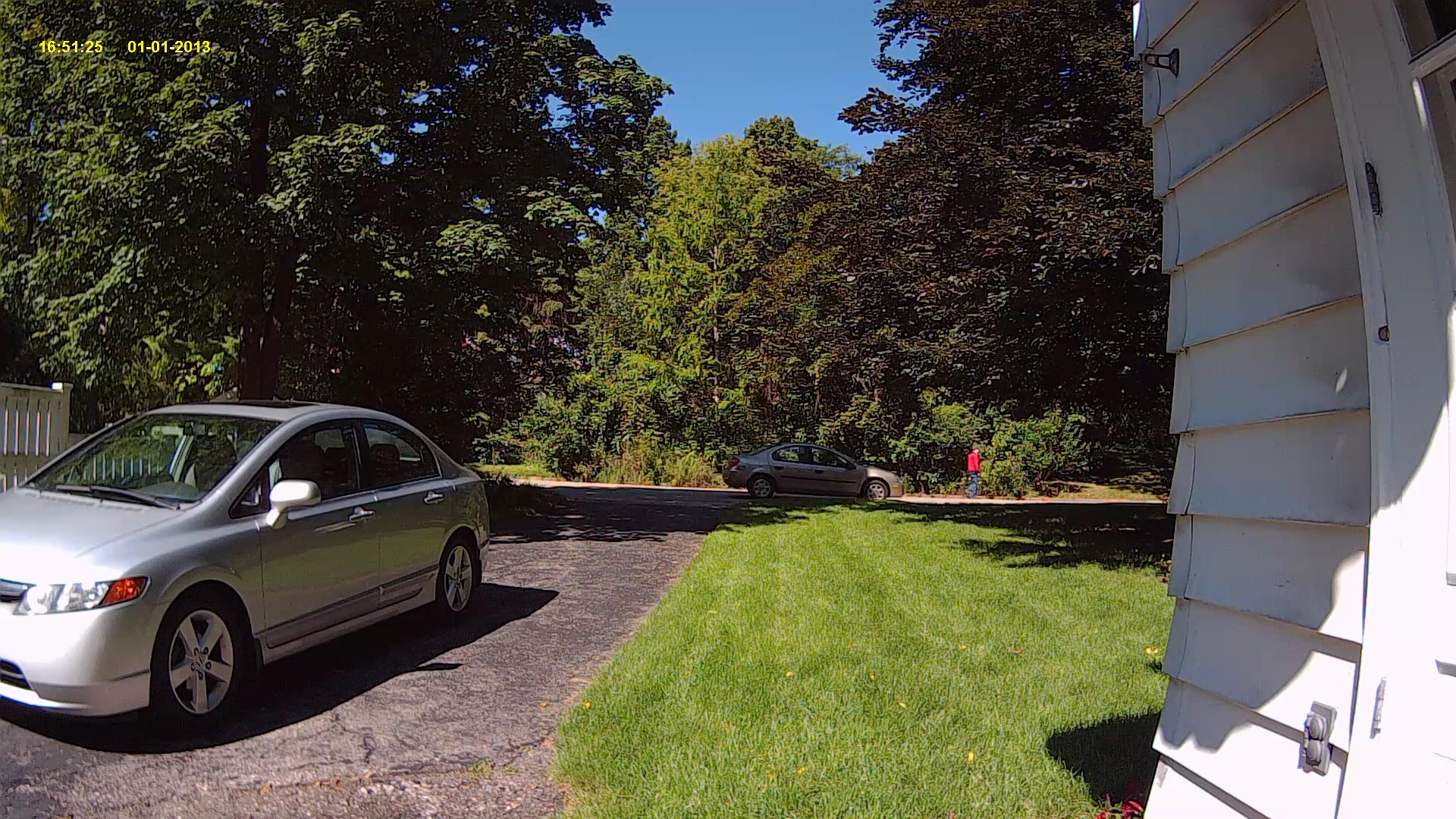

VW890, 1080p frame grab, stationary, daylight.

Conditions: Default configuration, daylight, stationary camera

KMPlayer info:

MOV_0001.AVI, Format : AVI, File size : 3.75 GiB, Duration : 46mn 19s, Overall bit rate : 11.6 Mbps

Video #0, Format : AVC, Format profile : High@L4.0, Format settings, CABAC : Yes, Format settings, Format settings, GOP : M=1, N=15, Codec ID : H.264, Duration : 46mn 18s, Bit rate : 11.5 Mbps, Width : 1920 pixels, Height : 1080 pixels, Display aspect ratio : 16:9, Frame rate : 29.936 fps, Color space : YUV, Chroma subsampling : 4:2:0, Bit depth : 8 bits, Scan type : Progressive, Bits/(Pixel*Frame) : 0.185, Stream size : 3.71 GiB (99%)

Audio #1, Format : AAC, Format profile : LC, Codec ID : FF, Duration : 46mn 19s, Bit rate : 128 Kbps, Channel(s) : 2 channels, Channel positions : Front: L R, Sampling rate : 22.05 KHz, Compression mode : Lossy, Stream size : 42.4 MiB (1%), Alignment : Split across interleaves, Interleave duration : 46 ms (1.39 video frame)

VW890 Internal Photos
VWTECH VW890 internal

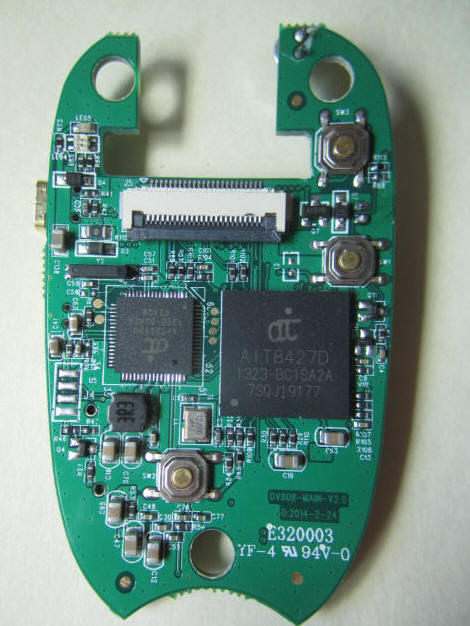

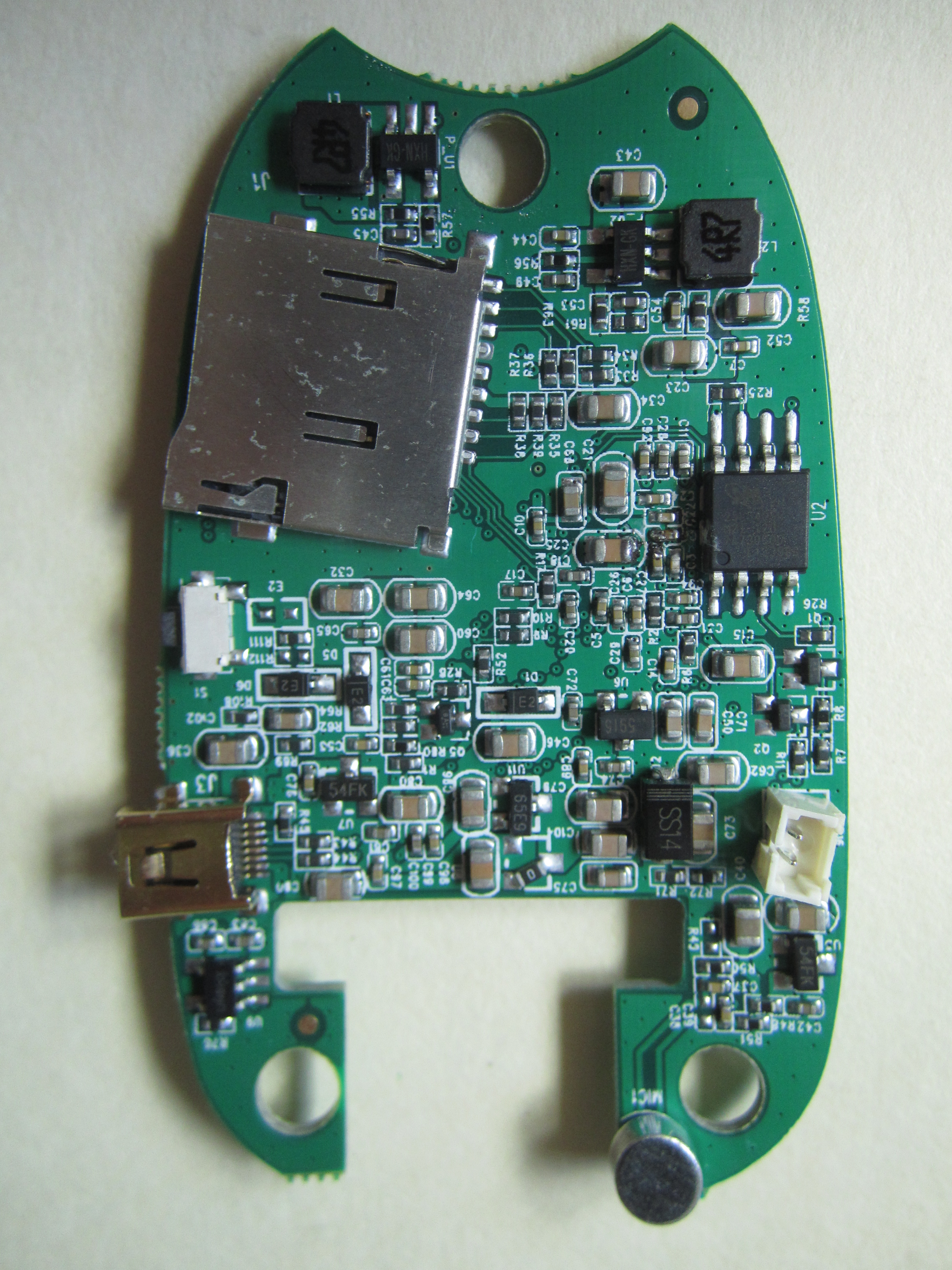

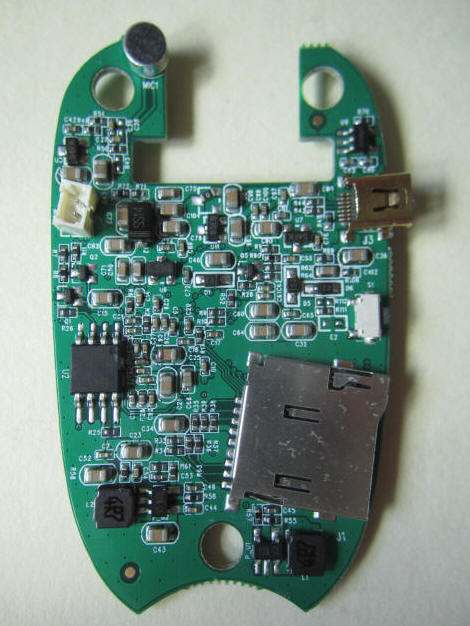

VW890 battery side, 25L6406E, battery connector, USB connector, electret microphone, Micro SD socket.
VWTECH VW890 internal internal

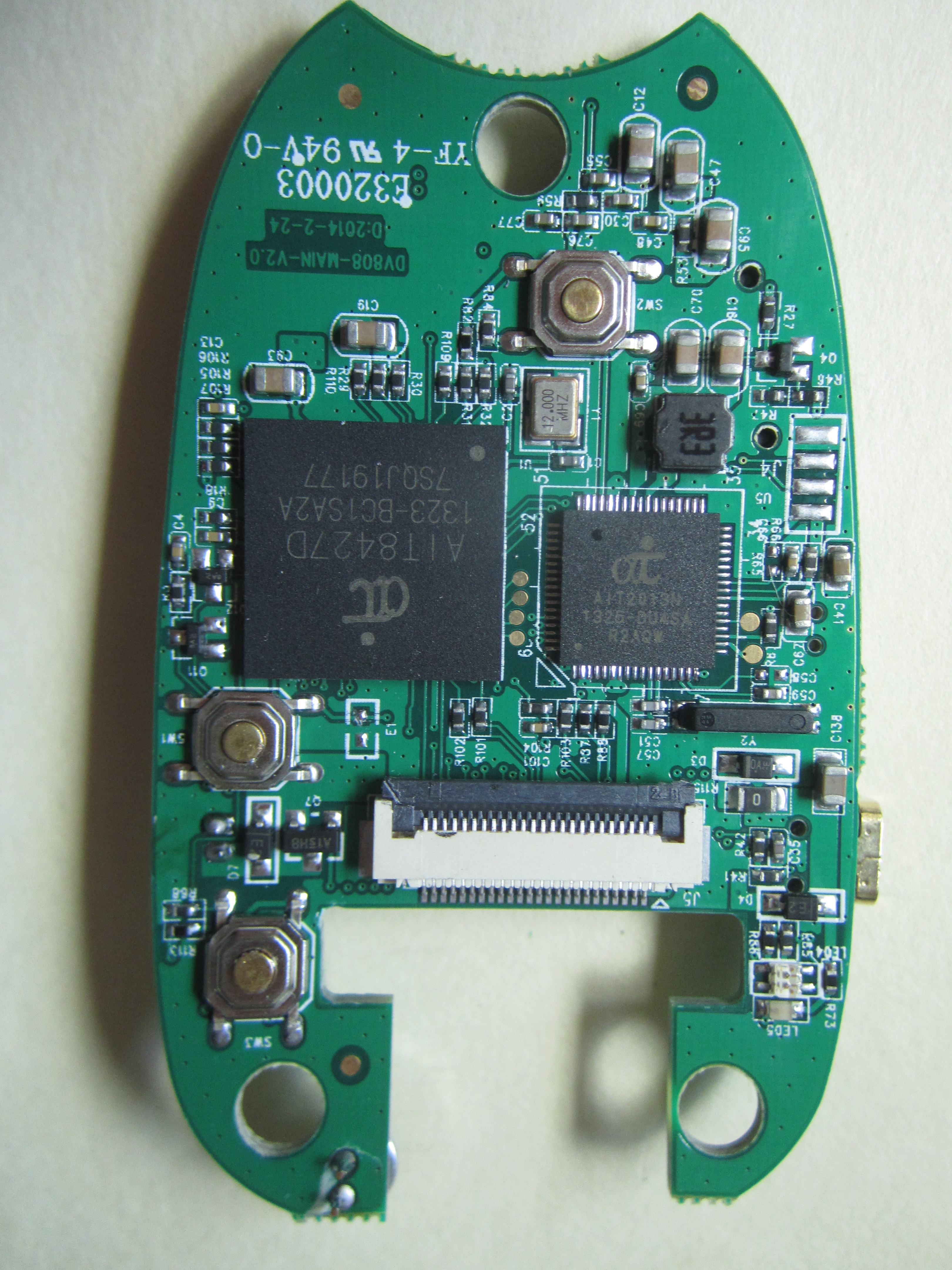

VW890 button side, three buttons, AIT8427D, AIT2013N, camera module compression connector.
VWTECH VW890 internal camera module

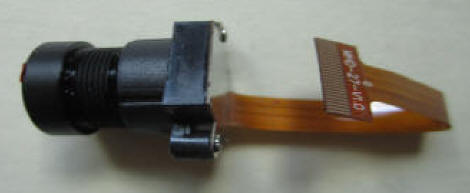

VWTECH VW890 internal camera module, flat cable 24 contact, 0.5mm pitch.  Lens barrel is 12mm thread, factory adjusted for focus, and sealed with glue.
VW890 LiPo battery module

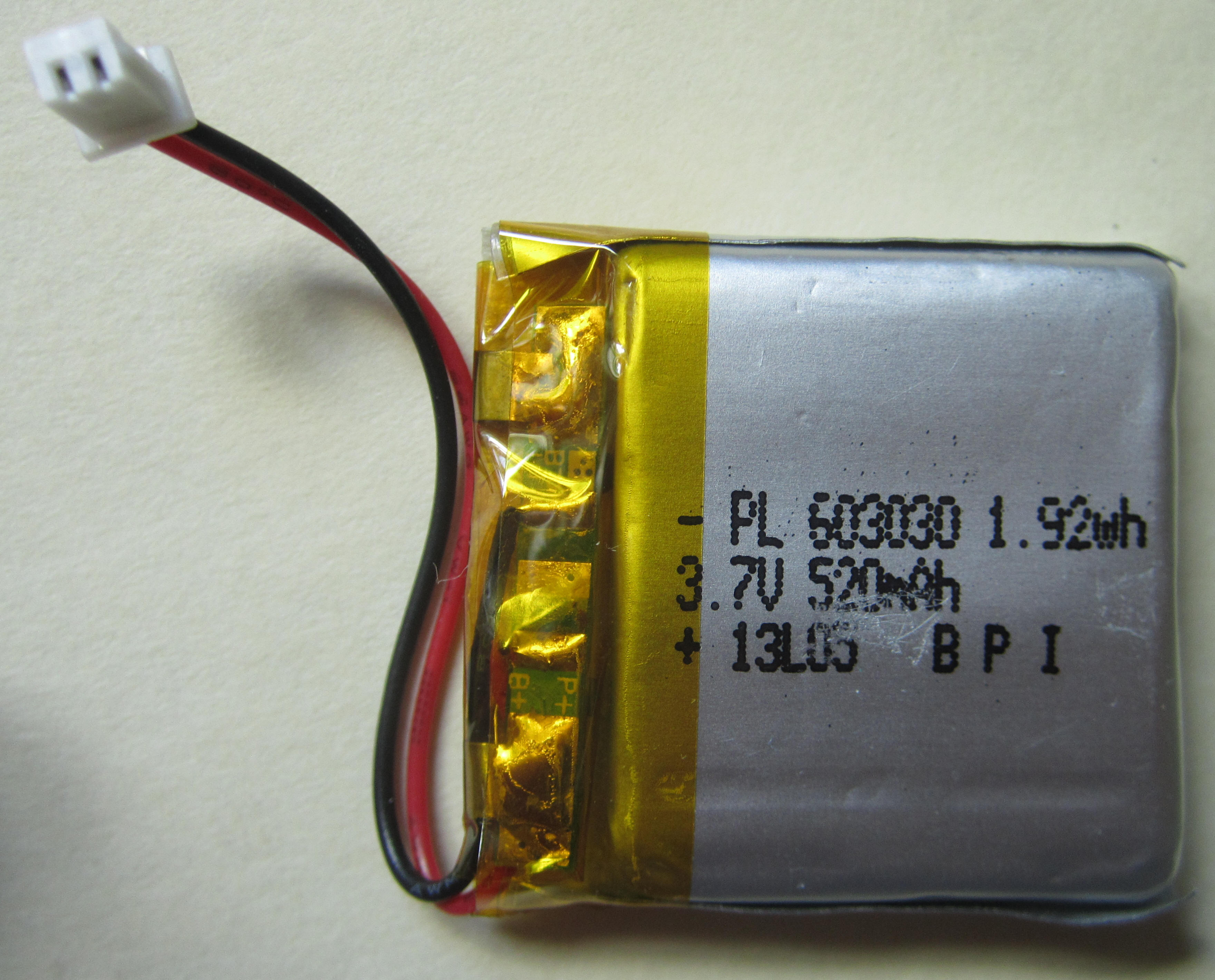

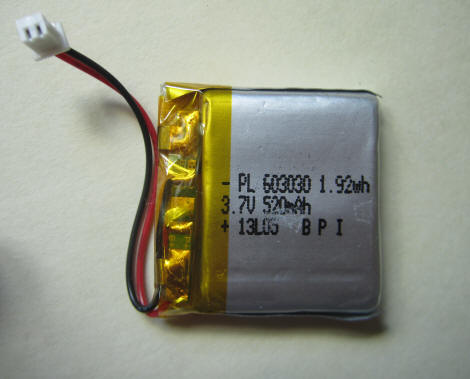

VW890 LiPo battery module with protection circuit, 6.0 x 30 x 30mm, 3.7V, 520 mAh, 1.92 Wh

140921 VW890 Flat Cable Extension
SUMMARY - My tests, your results might be different - An 8 inch extension at 720p and 1080p can be used to relocate the CCM  (Compact Camera Module) away from the PWB.  A 15 inch extension can be used at 720p, but did not work at 1080p.
Extreme care must be taken because the CCM and the cables are fragile.
Disconnect the battery before connecting or disconnecting.

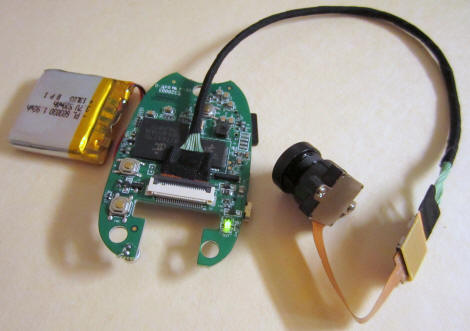

VWTECH VW890 8 inch extensionVW890 battery, PWB, 8 inch extension cable, CCM.
The CCM is connected to the PWB by a flat cable and 24 pin 0.5 mm connector.  I tested extending the flat cable using an 8 inch and 15 inch extension  available from ebay.  The extension consists of a cable male-male and connector female-female.

Both cables worked for me at 720p, photos and video.  At 1080p the 15 inch cable did not work because the video terminated early and the resultant AVI file was corrupt.

So, I would guess that cables 8 inches or shorter would work.  Your results might be different.
