 808 Car Keys Micro Camera Review
hope it can help your life safe and happiness
happiness
happiness

808 #29
The #29 is one version of the 808 car keys micro camera.

Summary - Circuit board dated 2016. Parts count is very low. Video is MJPG, 720x480 30.000 FPS. Audio is PCM 352.8 Kbps 22050 sampling Hz. Total file rate is various, 25 to 54 MB per minute.  Missing frame rate is 23% (bad).  Date time stamp is lower right, yellow on transparent.


170204 808 #29 Overview
170118 received information about this new 808 camera from Andre.  Purchased in December 2016.  Sold as a real 808 #16.(fraud).

Andre - "The construction cannot be cheaper; only one screw is installed to secure the PCB ( even if all 3 holes are there ), the battery was not glued in place rattling around.  The PCB shows a place holder for a battery's connector, but the battery is hard wired.  Delivered to Canada for $3.50 USD!"

Video File
Filename Format: SUNP0003.avi
Is the AVI file corrupt?:  No, it seems to play everywhere.
Wraper: AVI
Total data rate: 25 to 54 MB per minute (two sample videos, indoor and outdoor).  Depends on lighting and other factors.

Video Stream
Video: AVI, 720x480, 30.000 FPS,  CODEC MJPG
Video Aspect Ration Distortion:  Unknown.
Video date time stamp format:  01/29/2017 10:10:54
Video date time stamp location: lower right, yellow on transparent.
Video Missing Frame Rate (Daylight):  23%, 7 of every 30 frames are missing.  That is bad.


Audio Stream
Audio: PCM 352.8 kbps, 22050 Hz sampling, 16 bit, mono.

Internal
Printed Wiring Board: Labeled 4716, 1203G, 2016.06.14.  One crystal.  One CPU.  One firmware SPI flash chip.
Battery: Lipo labeled XL 16.11

Sample video file: 6 MB  170204 C29 SUNP0003.avi

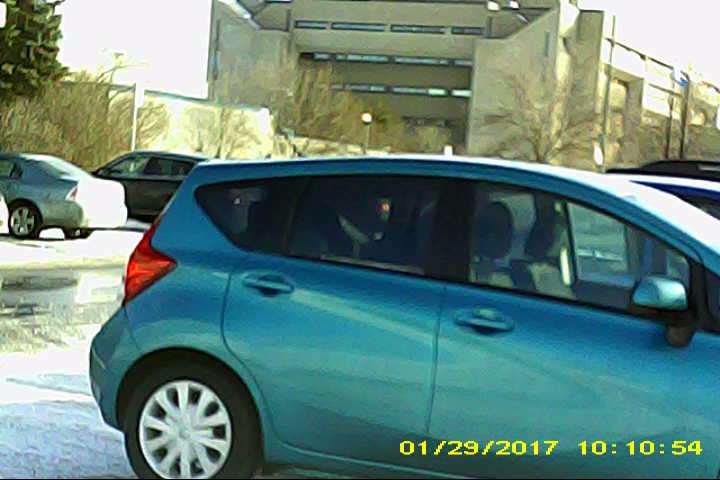

808 #29 Sample Video Frame Capture, 720x480


170204 808 #29 Internal Photos
808 #29 Car Keys Micro Camera

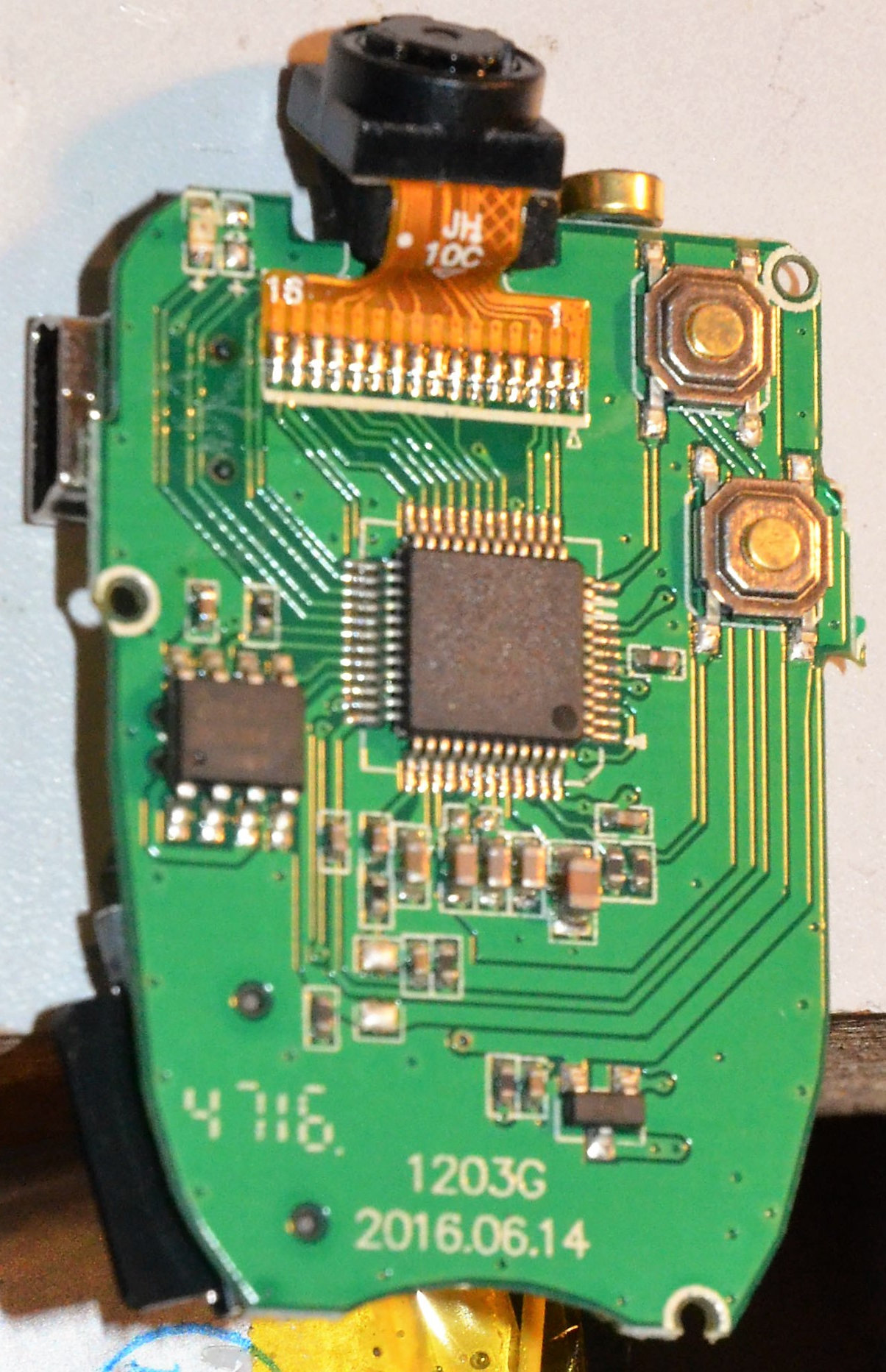

808 #29 button side.  Labeled 4716, 1203G, 2016.06.14.

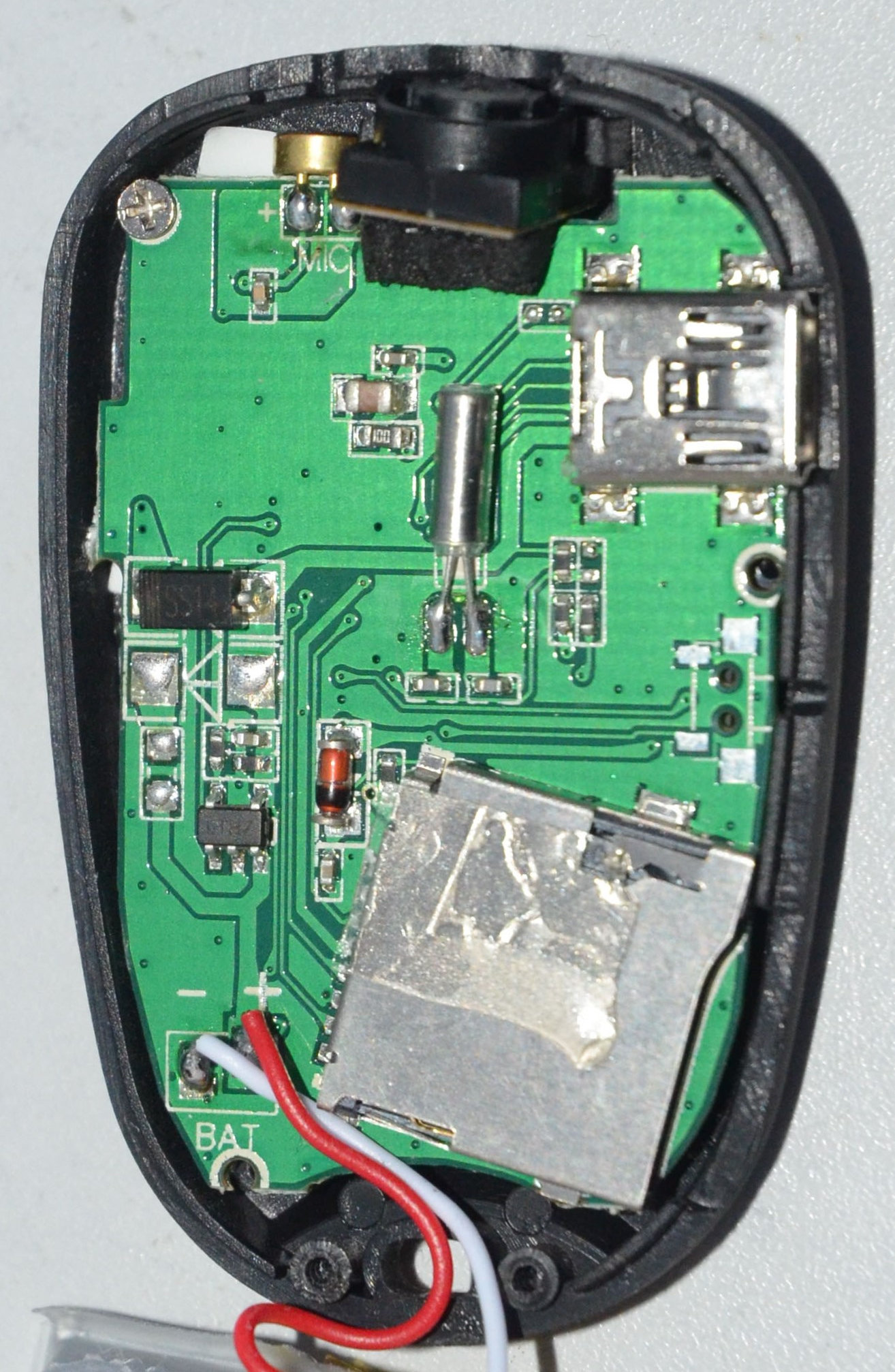

808 #29 battery side.

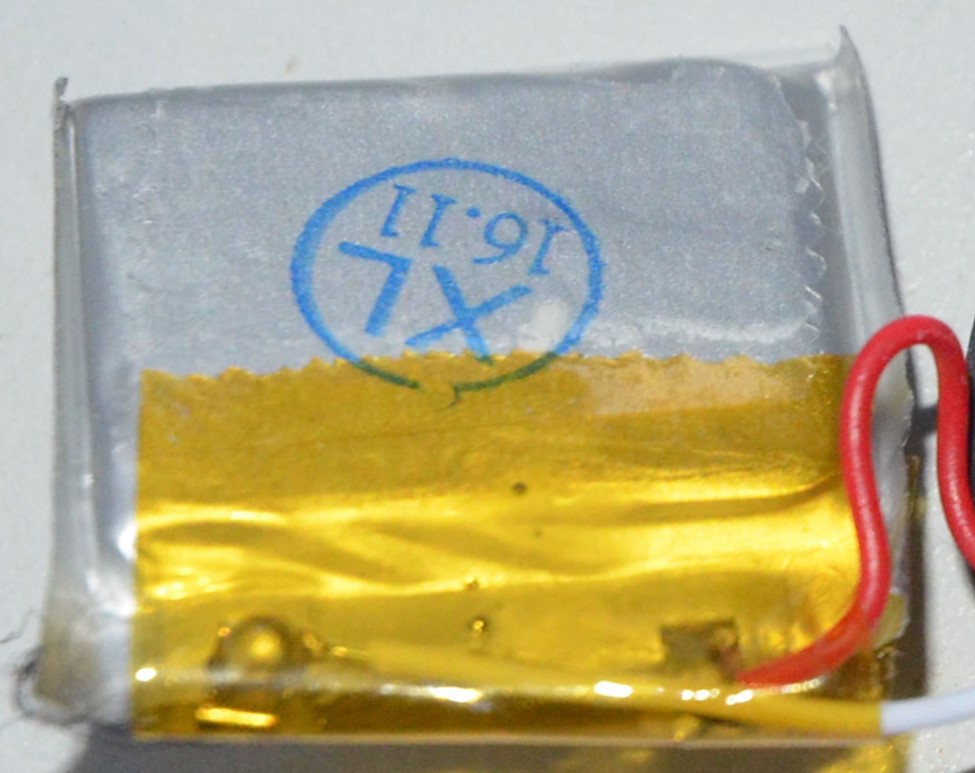

808 #29 Lipo Battery, labeled XL 16.11.



808 #29 KMPlayer Media Information
FIle - SUNP0003.avi  (shot in daylight)
Format : AVI
Format/Info : Audio Video Interleave
File size : 5.34 MiB
Duration : 5 s 933 ms
Overall bit rate : 7 555 kb/s
Director : Generplus
Original source form/Distributed by : Generplus
Recorded date : 2010-06-29
Copyright : Generplus
Video #0
ID : 0
Format : JPEG
Codec ID : MJPG
Duration : 5 s 933 ms
Bit rate : 9 639 kb/s
Width : 720 pixels
Height : 480 pixels
Display aspect ratio : 3:2
Frame rate : 30.000 FPS
Color space : YUV
Chroma subsampling : 4:2:2
Bit depth : 8 bits
Compression mode : Lossy
Bits/(Pixel*Frame) : 0.930
Stream size : 6.82 MiB
Audio #1
ID : 1
Format : PCM
Format settings, Endianness : Little
Format settings, Sign : Signed
Codec ID : 1
Duration : 5 s 921 ms
Bit rate mode : Constant
Bit rate : 352.8 kb/s
Channel(s) : 1 channel
Sampling rate : 22.05 kHz
Bit depth : 16 bits
Stream size : 255 KiB (5%)
Alignment : Aligned on interleaves
Interleave, duration : 349 ms (10.47 video frames)
